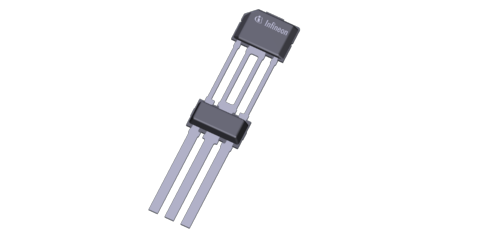

PG-SSO-3-53
Overview
General Information
| Package Material | PG |
| Package Family | SSO |
| Terminals | 3 |
| Version | 53 |
| Exposed Paddle | No |
Dimensions
| Body Length (mm) | 5.34 |
| Body Width (mm) | 3.64 |
| Min. Terminal Pitch (mm) | 1.655 |
-
PG-SSO-3-53_Interactive 3D
Share 03_00 | Jan 09, 2025 | PDF | 123 kb
Diagrams
Package Dimensions
Packing
Ammo-Pack
| Pieces/Ammo-Pack | 1500 |
| Ammo-Packs/Box | 1 |
Downloads
Package
-
PG-SSO-3-53_Interactive 3D
Share 03_00 | Jan 09, 2025 | PDF | 123 kb
-
PG-SSO-3-53_Interactive 3D_01
Share 03_00 | Jan 09, 2025 | STP | 694 kb
-
PG-SSO-3-53_Package Outline
Share 03_00 | Jan 09, 2025 | PDF | 73 kb
-
Board Assembly Recommendations (SSO) Addendum
Share 06_00 | May 09, 2025 | PDF | 1.4 mb
-
Board Assembly Recommendations (SSO)
Share 11_00 | Apr 25, 2025 | PDF | 1.13 mb
